We believe quality
begins with mould design capability and consider it to
be the key to successful mould making. At Ark we have
invested in both people and technology to ensure that
our designs meet your highest expectations.
1、Project
Engineering
★ The project engineer act as customer¨s representative
to follow up tooling schedule and
timely report to the customer on quality and delivery
issues.The project engineer also
guarantees that customer¨s technical requirement are
followed.
★ The project engineer is directly reported to the General
Manager to guarantee their
instruction are followed by the manufacturing group.
★ The project engineer will regularly update the customer
on the tooling progress.
2、MAGMASOFT Analysis,
Mold Design, N.C. Programming, (CAE/CAD/CAM System)
1>.CAE

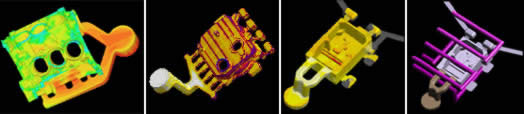

The Magmasoft,it can simulate flow process of metal
casting,such as flow field,temperature,
stress etc.According to these parameters,we can estimate
the quality of casting parts.It will
be very useful for setting parameters of equipment and
technics scheme. |
 |
2>.CAD
Ark Mold is using the
Unigrahics software for product design and mold design.
Unigrahics possesses the capability
of direct part line processing from product 3D model.
The assembly drawing is generated from
defining parameters for standard components of
mold base,insert parts,slides.The design is
completed in a 3D environment and the drawin-
gs can be generated in 2D format. |
 |
3>.CAM
The
Unigrahics software is extended into the CAM process.
Data consistency is guaranteed
by using the data from the CAD file for the CAM job of
NC programming. |
|
|
| |
|
|
|
|
|
