We believe quality
begins with mould design capability and consider it to
be the key to successful mould making. At Ark we have
invested in both people and technology to ensure that
our designs meet your highest expectations.
1¡¢DESIGN
& DEVELOPMENT
Plastics Engineering is our core technology,
enabling us to develop, analyze and engineer products
for injection molding and assembly. Applying Plastics
Engineering to Part Design brings your concept to life.
Come to Ark with a concept of your part's purpose and
appearance, or a partially or fully completed design,
and our team of plastics engineers will work to turn your
ideas into a tangible, functioning part. Ark knows and
understands the plastics industry, and our engineers use
their knowledge of the properties and behavior of plastics
to identify any problem areas in advance, eliminating
potential difficulties with tooling and assembly. They
consider the particulars for material selection, decorating,
packaging, texture and the environment of the end product
to best suit the end design.
Ark Design
and Development utilizes CAID with Pro-Engineer,solidworks and CATIA,
and offers numerous services, including:
Product Design
Metal to Plastic Conversion
Reverse Engineering
DFM (Design for Manufacturability)
DFA (Design for Assembly)
Mold Filling Analysis
Application Engineering--Materials
|
 ¡¡¡¡ ¡¡¡¡ |
2¡¢Project
Engineering
¡ú The project engineer act as customer¡¯s representative
to follow up tooling schedule and timely report to the
customer on quality and delivery issues.The project engineer
also guarantees that customer¡¯s technical requirement
are followed. ¡ú The project engineer is directly reported
to the General Manager to guarantee their instruction
are followed by the manufacturing group. ¡ú The project
engineer will regularly update the customer on the tooling
progress.
3¡¢Moldflow Analysis, Mold Design,
N.C. Programming,(CAE/CAD/CAM System)
1>.CAE
Using MOLDFLOW software to simulate the resin
flow in cavity, it will offer to mold designer the best
reference solution and greatly reduce the tooling development
lead time.
|
 |
 |

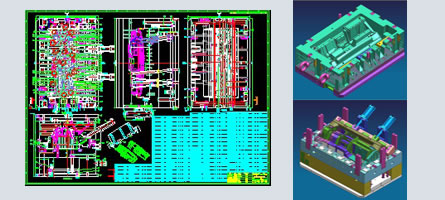

2>.CAD
Ark Mold is using the Unigrahics software for product
design and mold design. Unigrahics possesses the capability
of direct part line processing from product 3D model.
The assembly drawing is generated from defining parameters
for standard components of mold base, insert parts, slides.
The design is completed in a 3D environment and the drawings
can be generated in 2D format.
|
 |
3>.CAM
The Unigrahics software is extended into the CAM process.
Data consistency is guaranteed by using the data from
the CAD file for the CAM job of NC programming.
|
 |
 |
| |
|
|
|
|
|
|
|
|
|
|
